2010 Piaggio MP3 500 ie / Sport 新車速報 11 Nov 2009

At EICMA 2009, Piaggio is presenting 2 top performance versions of MP3, fitted with the powerful 500 Twin Spark engine to confirm
the versatility and dynamism of the Piaggio 3- wheel project that has become a world-wide success.

MP3 500和 MP3 500 Sport版所使用的引擎都是492cc水冷單缸引擎。馬力有40hp,扭力有4.3kg-m。MP3 500以啞黑色扶手和輪圈為記,令人不會和250/400混為一談。閣下如果喜歡MP3 250/400的外型,現在可以選擇MP3 500。如果喜歡Fuoco 500的外型,但希望車身掛上Piaggio車章的話,便可以選擇MP3 500 Sport。

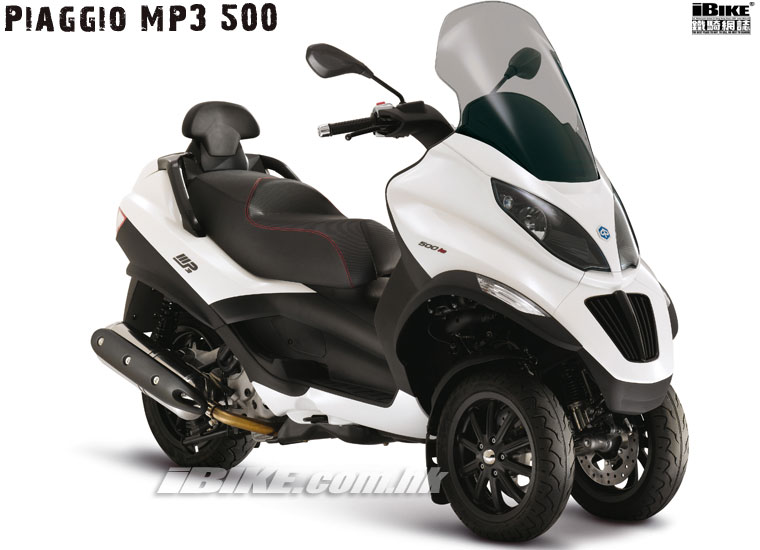

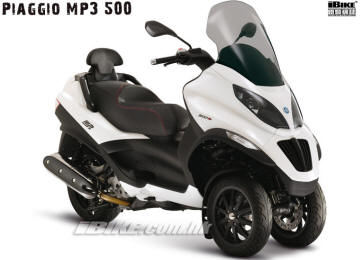

Piaggio MP3 500

It is the study of a 3-wheeled vehicle dedicated to fun and wide-range tourist use. Powerful, snappy and safe, MP3 500 has an exclusive white livery and special graphics that emphasise its sporty character.  The solution is that of a “top of the range” flagship for the MP3 family, fitted with the reliable and powerful Master 492cc engine with dual ignition, 4 valves, 4 stroke with electronic injection and liquid cooling, able to supply the maximum 40 hp power at 7,250 rpm and a maximum torque of over 42 Nm at 5,500 rpm: figures that in practical terms mean thrilling performance but also great flexibility and riding comfort in all riding conditions. The use of a double spark plug system optimises the combustion inside the cylinder, with a reduction in both noise and pollutant gas emissions. The result is a flexible, high performance engine, in top form even at average and low speeds, guaranteeing the Piaggio MP3 500 i.e. the best performance levels whilst fully respecting the environment.

New trim features: from the grab handle painted in glossy black, to the black rims and the saddle with its red stitching to underline the sporty nature of MP3 500 ie. And all this while still maintaining the qualities of comfort and safety that distinguish every MP3.

Comfort is guaranteed by the wide, ergonomic saddle, designed to ensure the maximum space for both rider and passenger, as well as the large windshield that provides excellent protection against wind and rain. Last but not least, the unbeatable roominess of the helmet compartment with double access (from both the saddle and the rear hatch), offering a 65-litre capacity for storing objects of up to 1 metre.

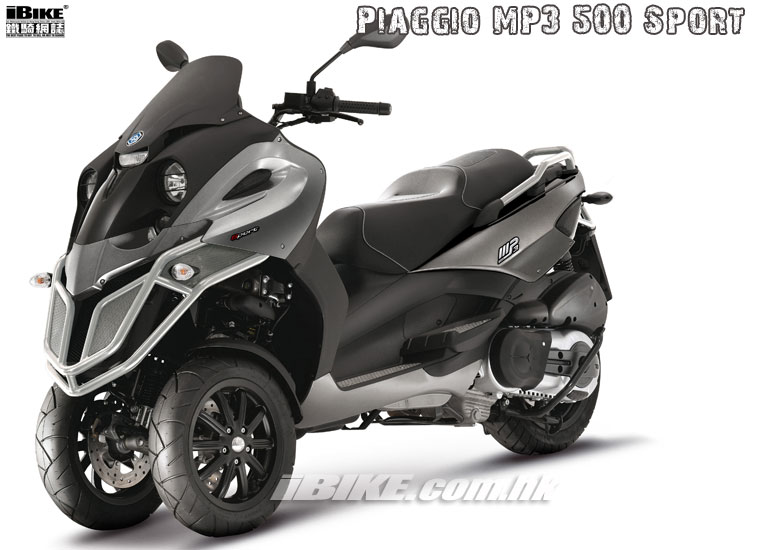

MP3 Sport

Piaggio MP3 Sport, on the other hand, is the version destined for the US market, soon to be presented at EICMA with its updated graphics. MP3 Sport was designed for those who don't accept compromises, whether in aesthetic or technical terms. The definite forms of MP3 500 Sport, underlined by the new grey shade, express strength and character, anticipating the performance levels of the powerful 492cc single cylinder unit (the same one fitted on MP3 500). The front view, characterised by the double wheel, highlights the steel tube bumper structure painted in an aluminium colour and with metal mesh inserts, forming a distinctly aggressive look. Apart from protecting the mechanics and the rider, this solution also offers the chance to admire the unique technology of the front suspension system. There's a pinch of “malice” in the choice of the “naked” metal handlebar, too, and the 10-spoke black rims. The headlight with its five elements is particularly effective (the two larger parts fitted with knock-proof protection devices derived from the off-road experience), as is the top fairing that offers aerodynamic protection along with the fairing of the leg shield, behind which a wide, comfortable footrest platform is located.

Taut and minimalist are the best words to describe the lines of the tail fairing, a combination of plastic and structures of metal
tubes echoing the front part of the vehicle and forming a handy rear luggage rack, while the large saddle ensures absolute comfort for both rider and passenger thanks to its ergonomic design and the minimal difference of level between the two seats.


Piaggio MP3 500 ie/ MP3 Sport - Technical specifications


Master single cylinder with dual ignition, 4 stroke, 4 valves, electronic injection

Engine capacity

492.7 cc

Bore x stroke

94 mm / 71 mm


40 HP (29.5 KW) at 7,250 rpm


42.23 Nm (4.30 Kgm) at 5,500 rpm

Timing system

Single overhead camshaft (SOHC) - 4 valves

Fuel system

Electronic injection.






Twist-and-go CVT with torque server


Dry centrifugal clutch with vibration dampers


Double cradle, high strength tubular steel trellis

Front suspension

Articulated quadrilateral consisting of four aluminium arms sustaining two steering tubes, and pull rod suspension geometry with offset wheel axle. Stroke: 85 mm.
Electro-hydraulic suspension blocking system.

Rear suspension

Swingarm rear suspension joined to the frame by an arm and two dual action hydraulic shock absorbers, adjustable 4-position spring pre-load. Stroke: 110 mm

Front brake

Double stainless steel disc Ø240 mm with dual piston calliper

Rear brake

Stainless steel disc Ø240 mm with floating dual piston calliper

Front wheel rim

Die-cast aluminium alloy 3.00x12”

Rear wheel rim

Die-cast aluminium alloy 4.50x14”

Front tyre

Tubeless 120/70-12” 51S

Rear tyre

Tubeless 140/70-14” 68S


2,160 mm


775 mm


1,550 mm

Seat height

785 mm

Fuel tank

12 litres (including 1.8 litre reserve).


Euro 3 (in compliance with US legislation for MP3 Sport)
