2021 DUCATI ALL NEW
MONSTER / MONSTER PLUS
更大力！更輕！更易騎！



高性能NK

2021 Monster是一款全新電單車：歐五新引擎、新車架和新外型。唯一不變的是Monster仍是容易駕駛、趣味十足的高性能NK街車。標准設備已包括Cornering ABS、Traction control、Wheelie control、Launch control和DQS雙向快速轉波器。

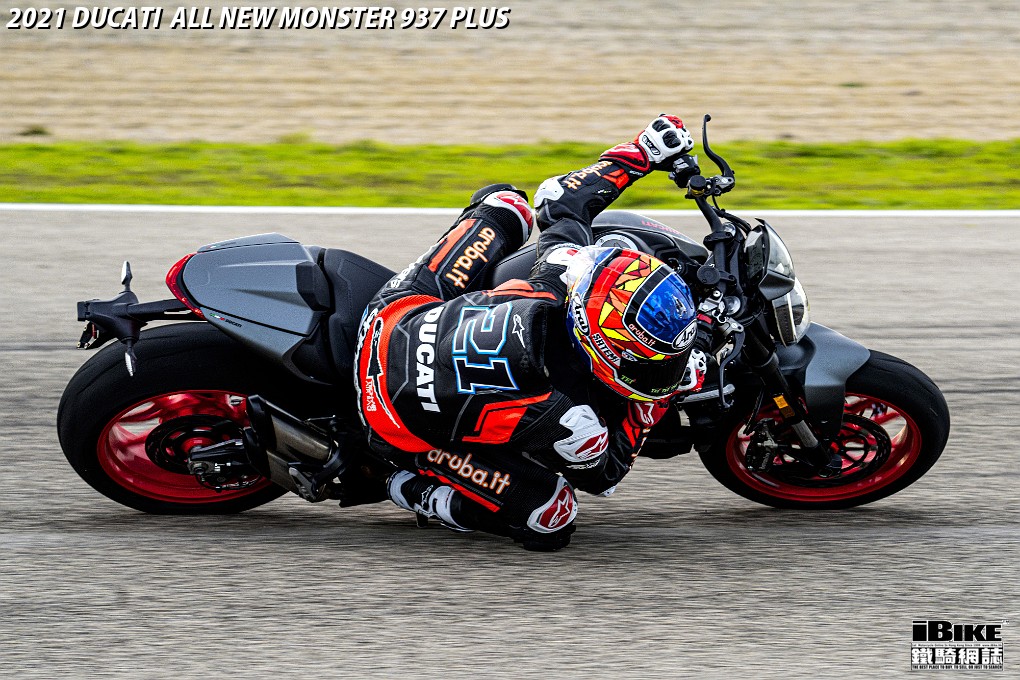

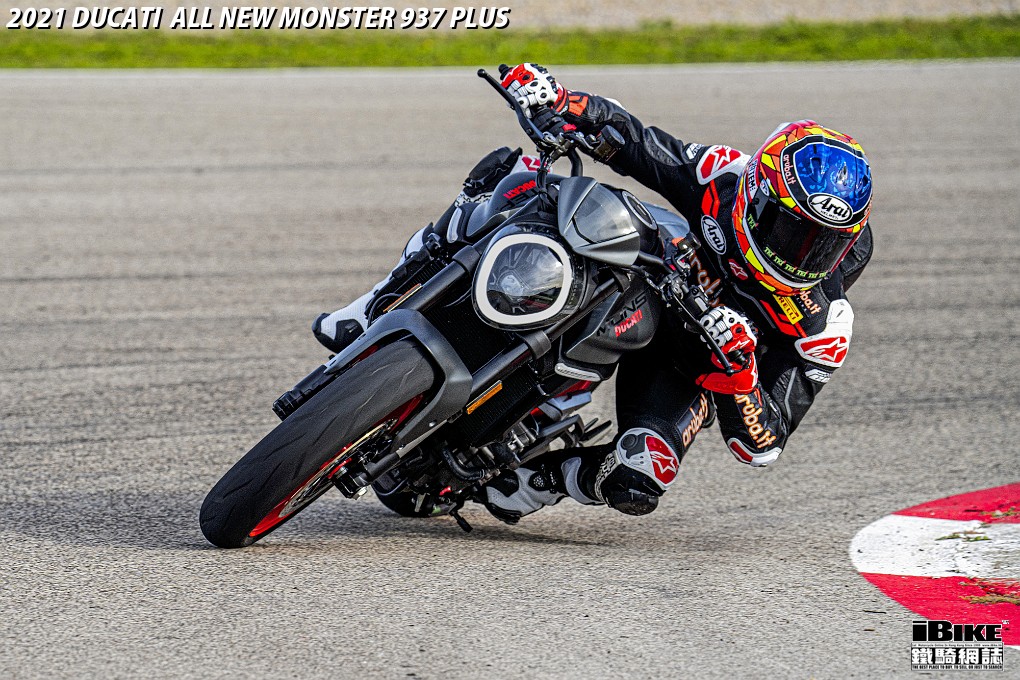

跑山嘆彎更如意

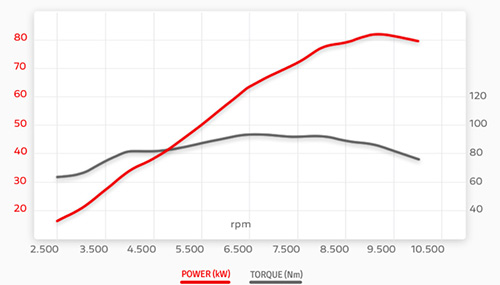

新款Monster由符合Euro 5的937 cc雙缸Desmodromic Testastretta 11°提供動力。在此最新版本中，它的重量已減少了2,4kg。在9,250 rpm時最大功率為111 hp，在6,500 rpm時最大扭矩為9.5 Kg-m。與之前的Monster 821相比，功率增加了2 hp，扭矩增加了0.7 Kgm。在中低轉速下，輸出曲線都更加豐富，行街或跑山嘆彎更稱心如意。

新Monster輕了18kg

全新開發的主車架意念來自Panigale V4，是一個短鋁框，直接連接至引擎頂部，新車架輕了4.5kg。由GFRP玻璃纖維增強聚合物技術的副車架支撐，更加輕巧結實。全新尾搖臂也輕了1.6kg，新輪圈也輕了1.7kg，所以新Monster的乾重只有166kg。與現款Monster相比，全車的減重手術令新Monster輕了18kg！

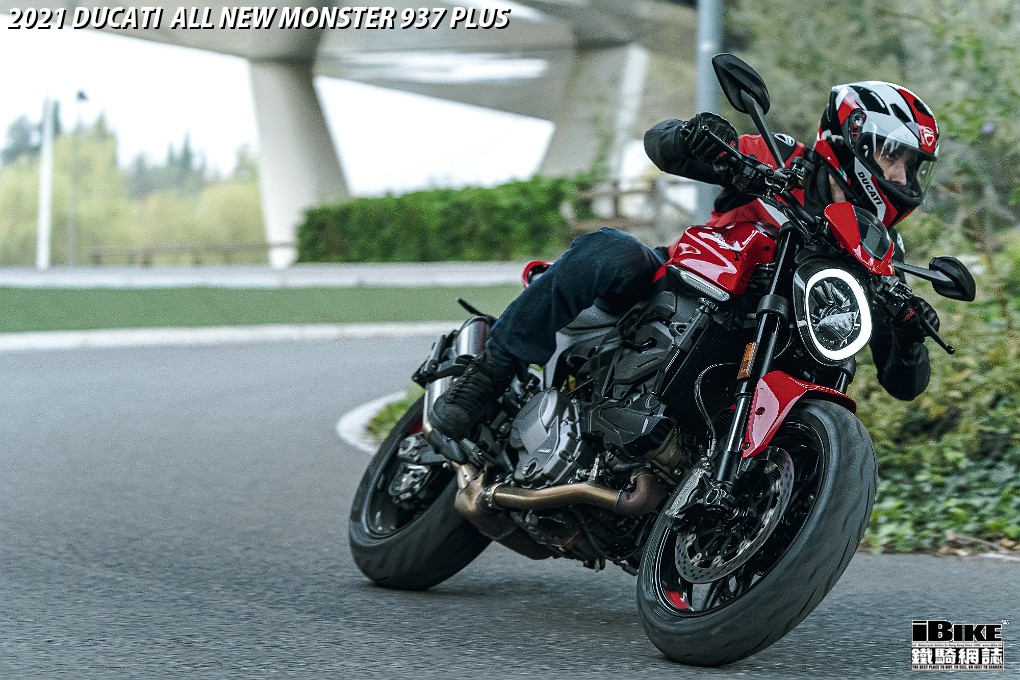

 窄路掉頭更容易

新Monster不僅輸出更大、重量更輕，而且慢速操控更容易。腳踏高度下降了10mm，並向前移了35mm。轉向把手也向後移了70mm，讓騎士有一個更挺直的座姿。軸距只有1,474 mm，新車同時增加了轉向角度，窄路掉頭更容易，與821版本相比，轉向角度多了7°，達到36°。

女仔都可以輕鬆駕馭

再加上車側兩面非常狹窄，方便落腳。標準座椅高度為820mm，座墊厚度是70mm。當選配800mm低座墊時，座墊厚度仍有50mm。想再低一點？原廠準備了Lowering Kit，把座高進一步降低至775mm。再加上慳了20%操作力度的極力子，女仔都可以輕鬆駕馭新款Monster。

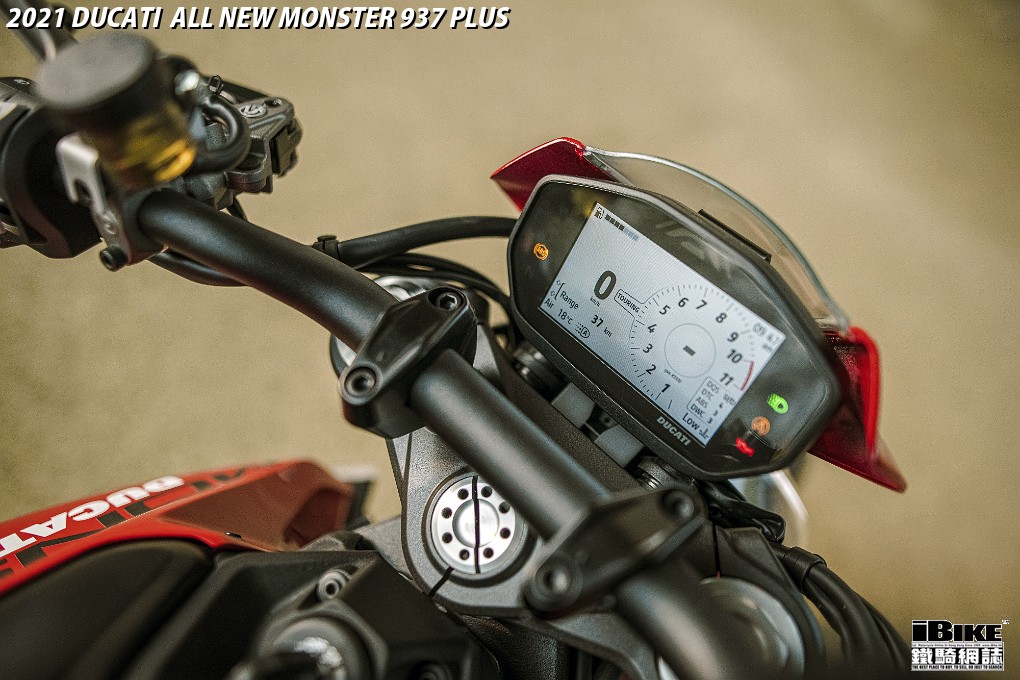

Panigale V4 TFT錶板

新的TFT 4.3英寸錶板，受到Panigale V4啟發，資料齊全又易讀。並可透過藍牙模塊將智能手機連接至DMS多媒體系統，並通過車把上的按鈕管理某些功能。顯示屏顯示“音樂播放器”命令，耳機連接狀態圖標，來電以及收到消息的警報圖標。

 標誌性的圓頭燈

全LED前大燈保持了標誌性的圓形，通過結合LED日間行車燈（DRL）系統和指揮燈自動取消功能，更顯現代化。

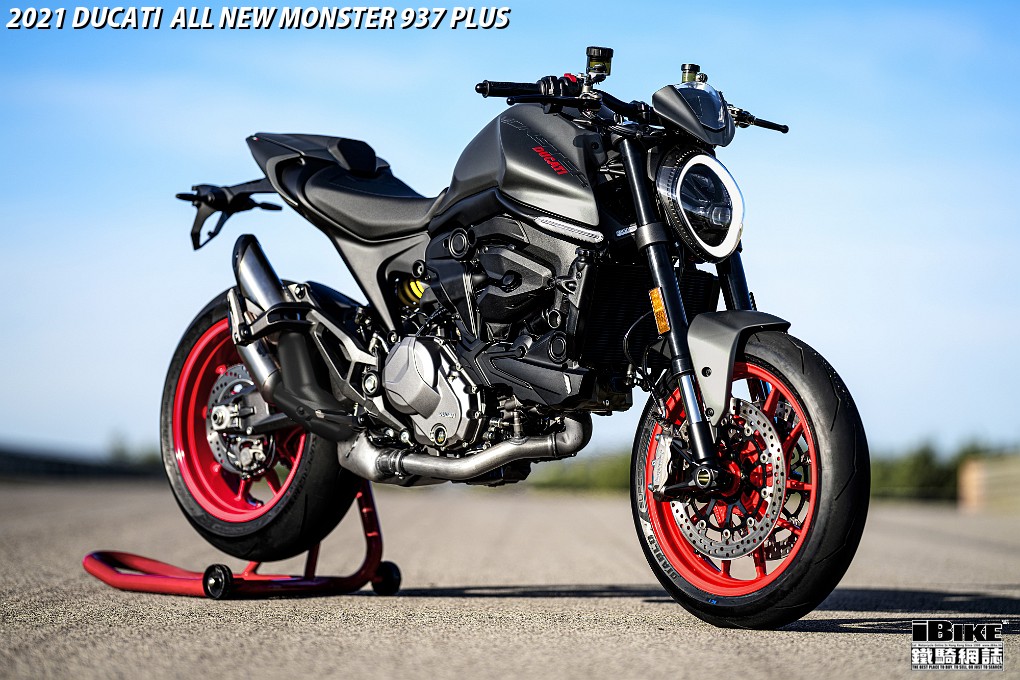

提供Plus版本

全新的Monster也將提供Plus版本，增加了風擋和把乘客座位蓋上的配件，讓Monster變為單座版。

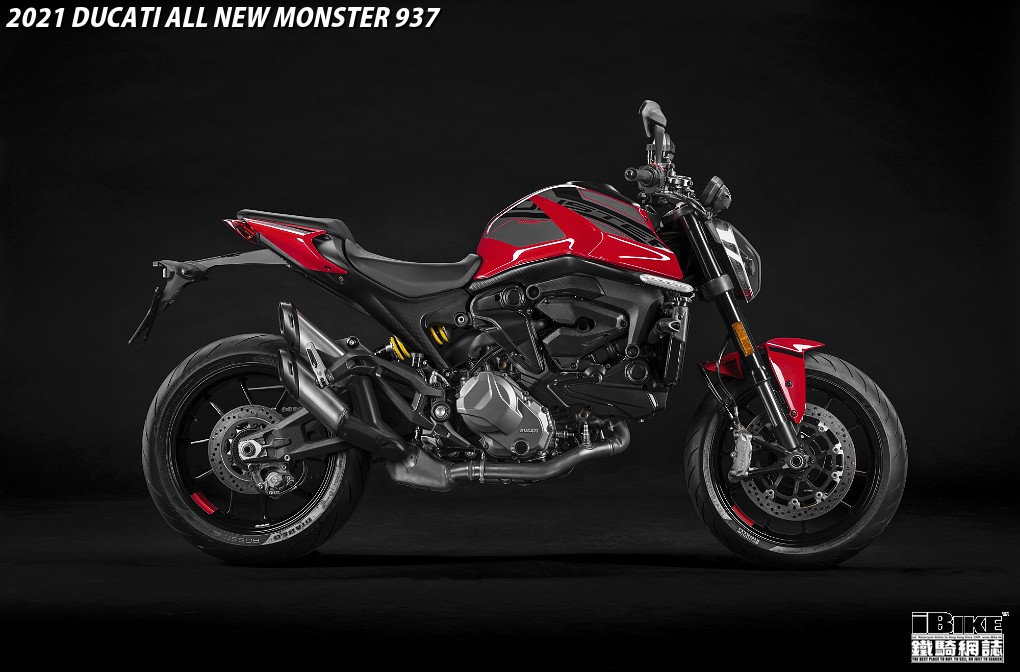

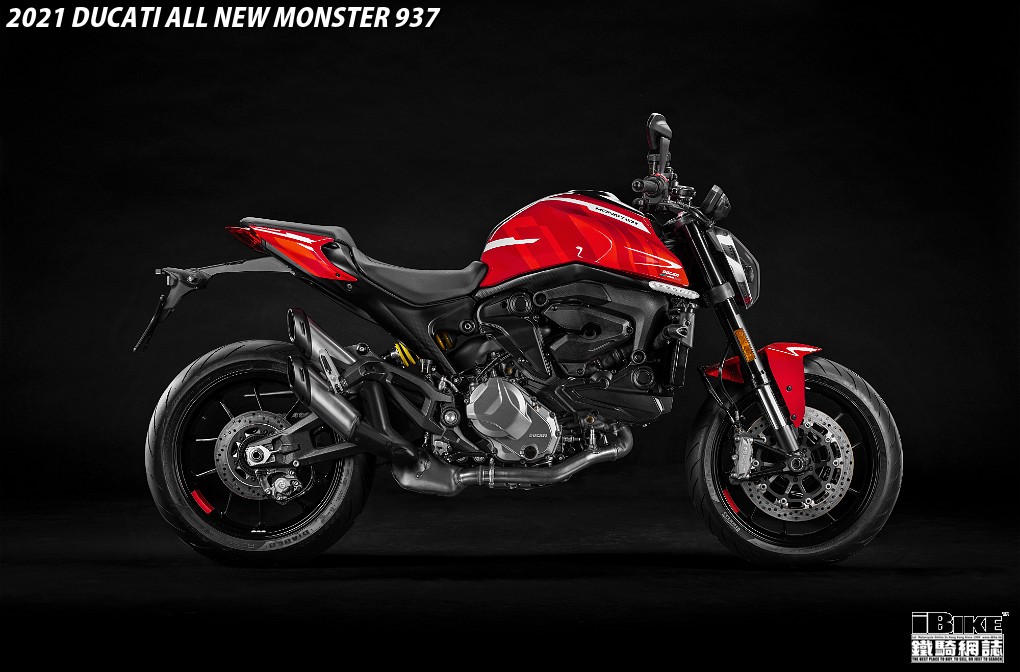

發揮創作天份

原廠更配備貼紙套件和彩繪塑料套件，也有Termignoni死氣喉和肚兜，讓閣下盡情發揮創作天份。

Ducati Monster / Monster Plus

    • Colours
        ◦ Ducati Red with black wheels
        ◦ Aviator Grey with red wheels
        ◦ Dark Stealth with black wheels

Standard features 1

        ◦ 937 cc Testastretta 11° engine
        ◦ Euro 5-compliant
        ◦ Maximum power 111 hp at 9,250 rpm
        ◦ Maximum torque 9,5 Kgm at 6,500 rpm
        ◦ Weight (dry) 166 kg
        ◦ Aluminium front frame
        ◦ Rear subframe in GFRP (Glass Fiber Reinforced Polymer)
        ◦ Aluminium swingarm
        ◦ New full-LED lighting system with swiping technology indicators
        ◦ Full-TFT 4.3” screen indicating selected gear and fuel level
        ◦ Riding Mode (3 configurations)
        ◦ Adjustable ABS Cornering (3 levels with “only front” Mode)
        ◦ Adjustable DTC and DWC (8 levels)
        ◦ Launch Control

Standard features 2

◦ 43 mm upside down fork
        ◦ Adjustable monoshock
        ◦ Brembo 320 mm front brake discs with M4.32 monobloc calipers, radial pump and pads made of sintered material
        ◦ Hydraulic clutch with radial pump
        ◦ 820 mm seat height, 795 mm (optional) or up to 775 mm, with lowered seat and lowered suspension kit
        ◦ DQS up/down

Ducati Monster Plus

    • Main as-standard equipment - as per Monster except for:
        ◦ Windscreen
        ◦ Passenger seat cover

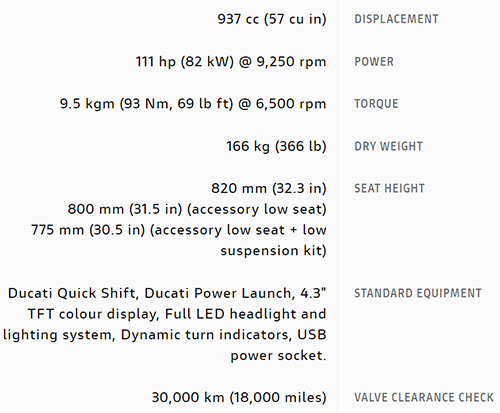

2021 DUCATI MONSTER / MONSTER PLUS
ENGINE
TYPE Testatretta 11°, V2 - 90°, 4 valves per cylinder,
desmodromic valvetrain, liquid cooled
DISPLACEMENT 937 cc (57 cu in)
BORE X STROKE 94 mm x 67.5 mm
COMPRESSION RATIO 13.3:1
POWER 111 hp (82 kW) @ 9,250 rpm
TORQUE 9.5 kgm (93 Nm, 69 lb ft) @ 6,500 rpm
FUEL INJECTION Electronic fuel injection system,
Ø 53 mm throttle bodies with Ride-by-Wire system
EXHAUST Pre-muffler and twin muffler, catalytic converter
and 2 lambda probes
TRANSMISSION
GEARBOX 6 speed
PRIMARY DRIVE Straight cut gears, ratio 1.85:1
RATIO 1=37/15, 2=30/17, 3=28/20, 4=26/22, 5=24/23, 6=23/24
FINAL DRIVE Chain, front sprocket z15, rear sprocket z43
CLUTCH Slipper and self-servo multiplate wet clutch
with hydraulic control
CHASSIS
FRAME Aluminum alloy Front Frame
FRONT SUSPENSION Ø 43 mm usd fork
FRONT WHEEL Light alloy cast, 3.5" x 17"
FRONT TYRE Pirelli Diablo Rosso III 120/70 ZR17
REAR SUSPENSION Progressive linkage, preload adjustable monoshock,
aluminium double-sided swingarm
REAR WHEEL Light alloy cast, 5.5" x 17"
REAR TYRE Pirelli Diablo Rosso III 180/55 ZR17
WHEEL TRAVEL (FRONT/REAR) 130 mm / 140 mm (5.1 in / 5.5 in)
FRONT BRAKE 2 x Ø 320 mm semi-floating discs,
radially mounted Brembo M4.32 monobloc 4-piston callipers,
radial master cylinder, Cornering ABS
REAR BRAKE Ø 245 mm disc, Brembo 2-piston floating calliper,
Cornering ABS
INSTRUMENTATION 4.3" TFT colour display
DIMENSIONS AND WEIGHTS
DRY WEIGHT 166 kg (366 lb)
KERB WEIGHT* 188 kg (414 lb)
SEAT HEIGHT 820 mm (32.3 in)
800 mm (31.5 in) (accessory low seat)
775 mm (30.5 in) (accessory low seat + low suspension kit)
WHEELBASE 1,474 mm (58.0 in)
RAKE 24°
TRAIL 93 mm (3.7 in)
FUEL TANK CAPACITY 14 l (3.7 US gal)
NUMBER OF SEATS 2
EQUIPMENT
SAFETY EQUIPMENT Riding Modes, Power Modes, Cornering ABS,
Ducati Traction Control,
Ducati Wheelie Control, Daytime Running Light
STANDARD EQUIPMENT Ducati Quick Shift, Ducati Power Launch,
4.3" TFT colour display,
Full LED headlight and lighting system,
Dynamic turn indicators, USB power socket
Additional standard equipment
for Monster Plus:		 Flyscreen, Passenger seat cover
READY FOR Ducati Multimedia System, Heated grips
WARRANTY AND MAINTENANCE
WARRANTY 24 months, unlimited mileage
SERVICE INTERVALS 15,000 km (9,000 miles) / 12 months
DESMOSERVICE 30,000 km (18,000 miles)
