DIGITAL
MONITOR V3 |
 |
In the minimal size of the box, there are various kinds of
functions.It can display
the information what the rider really wants to know in real
time.
Functionality and visibility are very much improved from the
previous version.
We also prepare the optional parts and accessories for enhancing
its functions. |
|
Digital
display monitoring meters showing various information |
 |

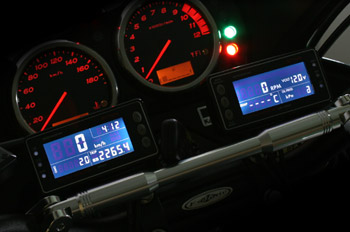

Digital
Monitor prepares two lineups.
"Speed meter" measures not only speed, but also maximum
speed, trip, odo and etc.
"Rev&Temp meter" measures engine revolution, water/oil
temperature and etc.
|
|
  |
|
Negative
liquid crystal display for better visibility |
|
| With
inversion negative liquid crystal display, the display
is always clear in the day time and also in the night
time. |
|
|

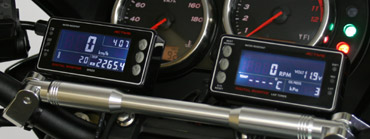

Universal fitting design |
 |
The
upgraded V3 square design can fit regardless of the
motorcycle model.
Also it is totally your choice how to line up both
meters.
Of course, we prepare many kinds of mounting brackets
for smart fitting on the motorcycle. (Please
see the below) |
|
 |
 |

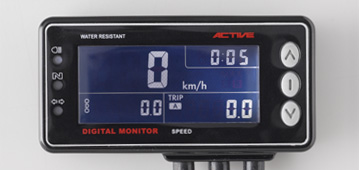

In addition to the speed meter
function, it is built in other functions such as max. speed
memory, clock, odo/trip meter and etc.
Also the operation has been improved very much from the previous
model and become more user-friendly.
|
Functions
|
Speed meter |
Speed |
Display the current speed. Available in "km/h"
and "mph". |
|
Speed warning |
When reaching to the set speed (set speed can be
adjusted), speed display starts flashing for
warning. |
|
Max. speed memory |
Two max. speeds can be recorded in two
indivisual memories. Each memory renews
automatically in case of exceeding the current
memory. Two memories also can be deleted
individually. |
|
Odo meter |
Display the accumulated distance from the point
when the unit was installed. The value is
adjustable. *2 |
|
Trip meter |
Display A or B trip meter. (Running distance is
recorded on both A and B memories.) It can be
switched over between A and B. Also two memories
can be reset individually. |
|
Sub function |
LED indicator |
High beam, neutral lamp, indicator |
|
Clock |
24-hour display |
|
Specifications
|
Available model |
12V battery motorcycles
*1 |
Waterproof performance |
JIS 0203 S2 |
|
Secured working voltage |
8-18V DC |
Secured working temperature |
from -30centigrade
to +60centigrade |
|
Current consumption |
50mA average (max. 120mA) |
LCD visible angle |
H:+/-30degrees
V:+15degrees -30degrees |
|
Unit size |
89(L) x 44.3/47(W) x 19.4(H)
mm |
|
|
*1 Non battery motorcycles, 6V
battery motorcycles and AC motorcycles are not available.
*2 It can not use as the
substitution of the original meter.
|
|
